CHARATERISTICS

The locked double thread stitches are produced by the combination of single straight needle, poking thread by connecting rod and thread taking by the oscillating shuttle. The feeding is synchronized by differential press foot applied. It is good for the sewing of extra-long and sticky materials without shifting of layers. Horizontal stand is applied.

Uses

It is suitable for sewing of extra thick materials such as canvas, different kinds of container slings, shoes, tents and flex wheel etc.

Specifications

a. Max. Sewing Speed: 800/min.

b. Max. Pitch of Needles: 12mm

c. Max. Height of Pressure Foot 23 mm

d. Max. Sewing Thickness: 25mm

e. Type of Needle: 8 X 200/230/250/300#

f. Power of Motor: 550W

g. Dimensions of Head: 736X270X590mm

h. Net Weight of Head: 78Kg

Order

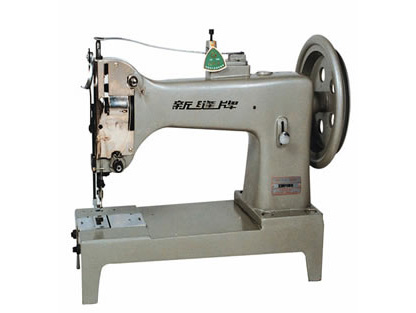

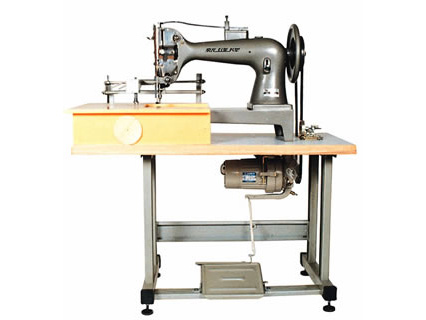

Product name:	GB4-3A SEWING MACHINE FOR EXTRA-THICK MATERIALS
